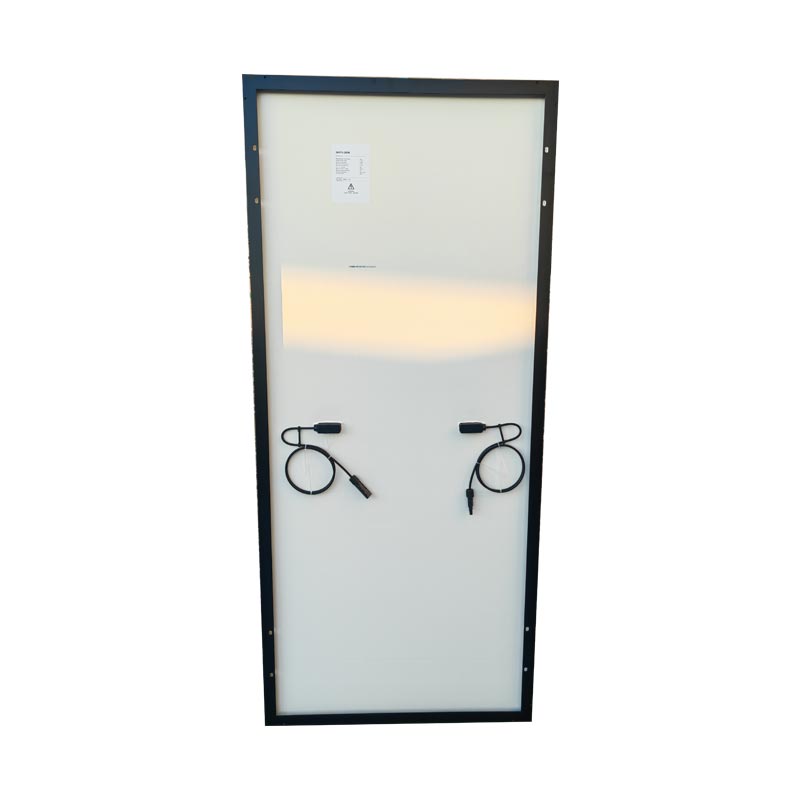

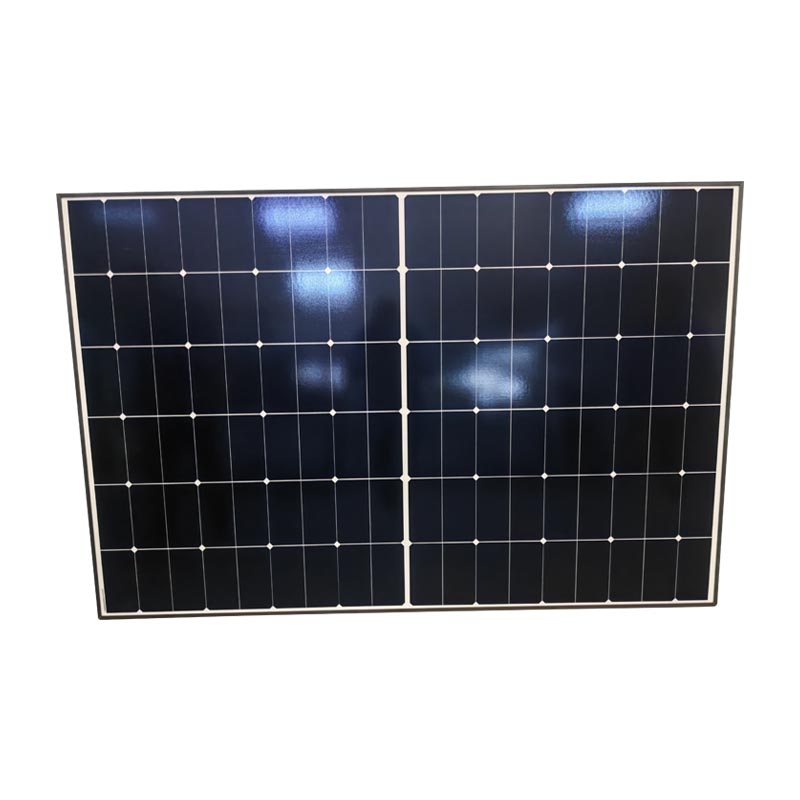

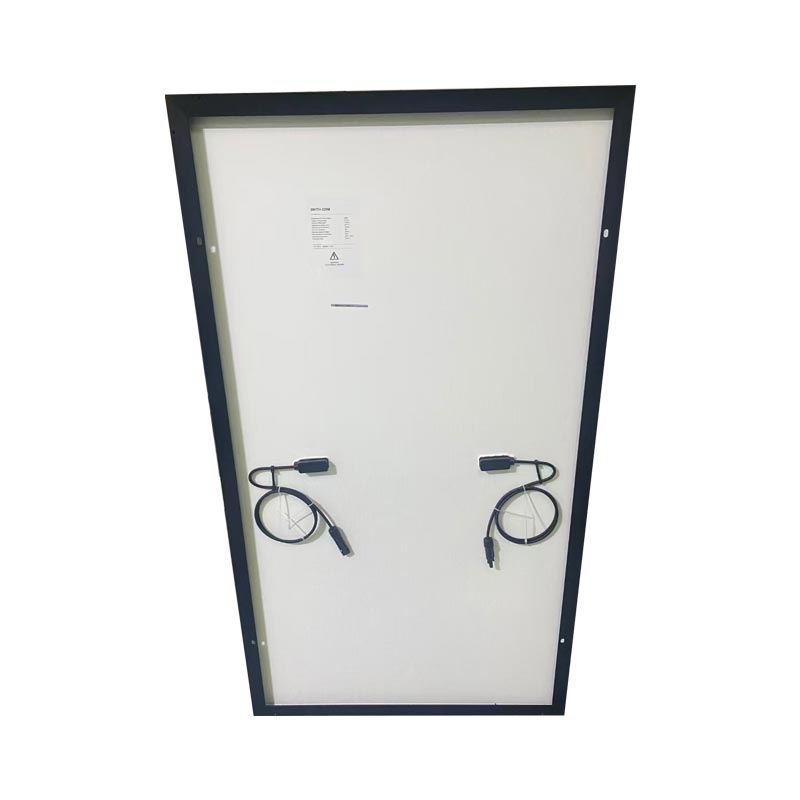

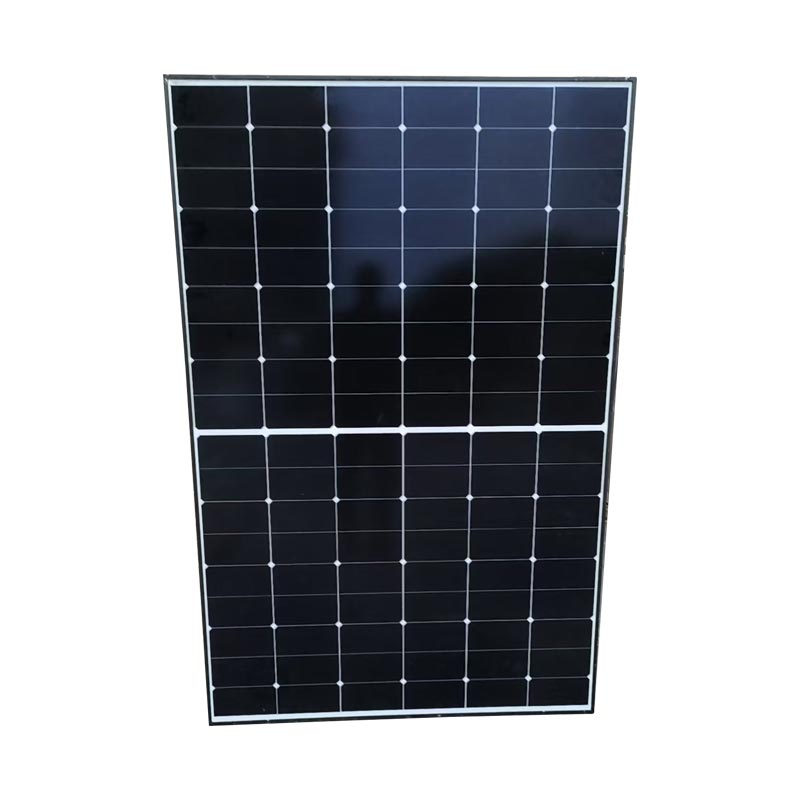

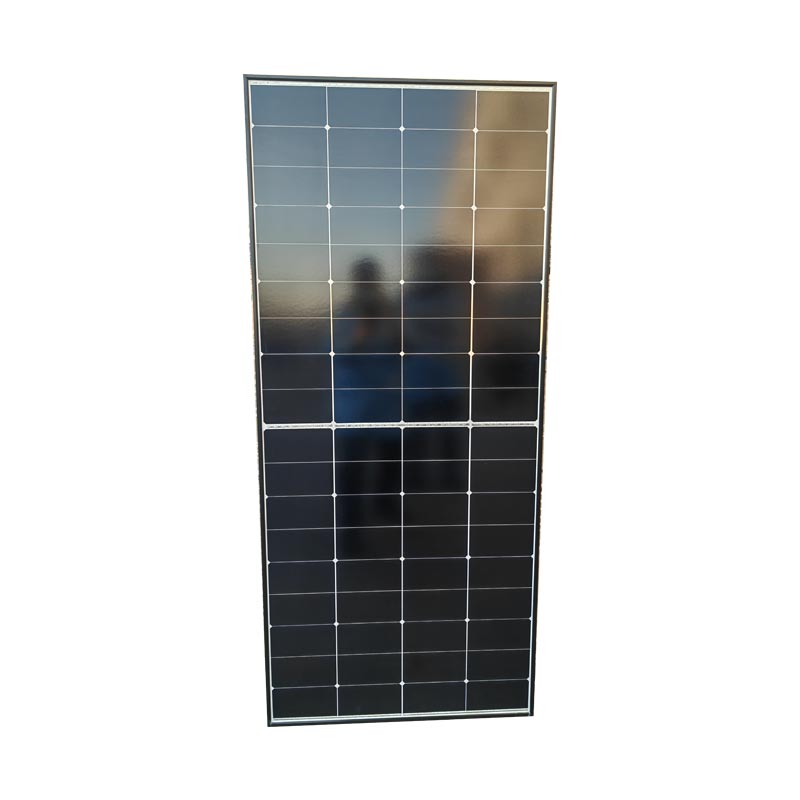

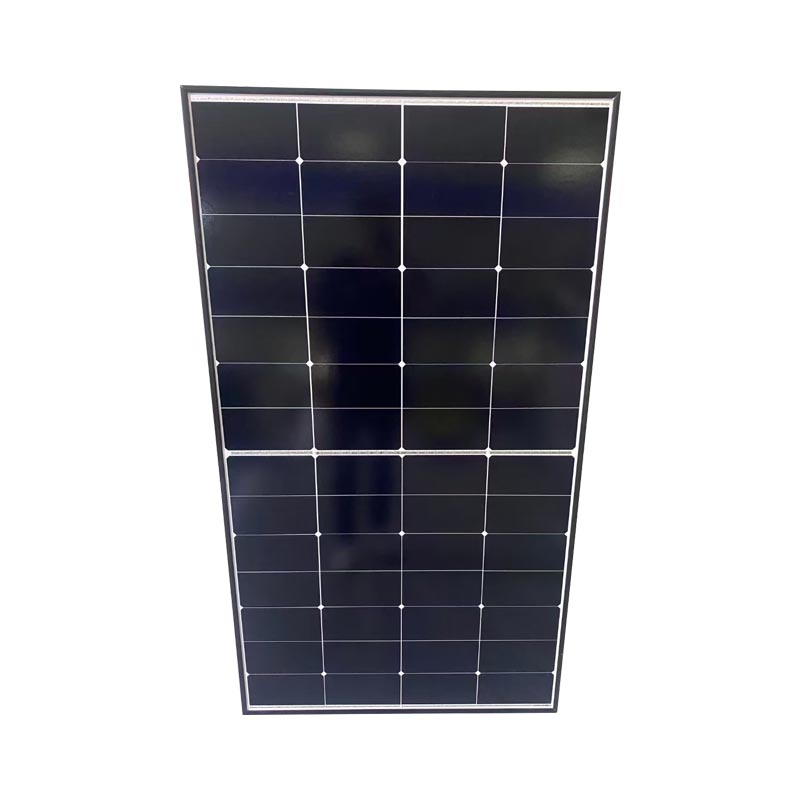

LR5-28HTH-220M household solar panels
The GEYA LR5-28HTH-220M household solar panels is designed for modern families. It uses high-efficiency monocrystalline silicon cells certified by the German TÜV, achieving an average annual power generation efficiency of 22.3%. The system is equipped with an intelligent micro-inverter and supports off-grid/grid-connected dual-mode operation, creating a 24-hour green energy solution for you.
LR5-28HTH-220M household solar panels Highlight
1. IP68 protection certification: dustproof, waterproof and anti-freezing (can withstand 1.2 meters of water for 30 minutes)
2. Industrial-grade component warranty: 25-year power attenuation ≤5% (industry average 20 years/7%)
3. Ultra-wide temperature operating range: -40℃~+85℃ environment stable operation
4. Safety design: dual diode circuit protection + 22A smart fuse
Mechanical Parameters
| Junction Box | IP68, two diodes |
| Output Cable | 4mm², 1200mm length can be customized |
| Glass | Single glass, 3.2mm coated tempered glass |
| Weight | 12.1Kg |
| Dimension | 1354*767*30mm |
| Max Generating Power | 220W |
Operating Parameters
| Operational Temperature | -40℃~+85℃ |
| Power Output Tolerance | 0~+5W |
| Maximum Series Fuse Rating | 22A |
| Nominal Operating Cell Temperature | 45±2℃ |
| Protection Class | Class II |
| Fire Rating | UL type 1 or 2 IEC Class C |
