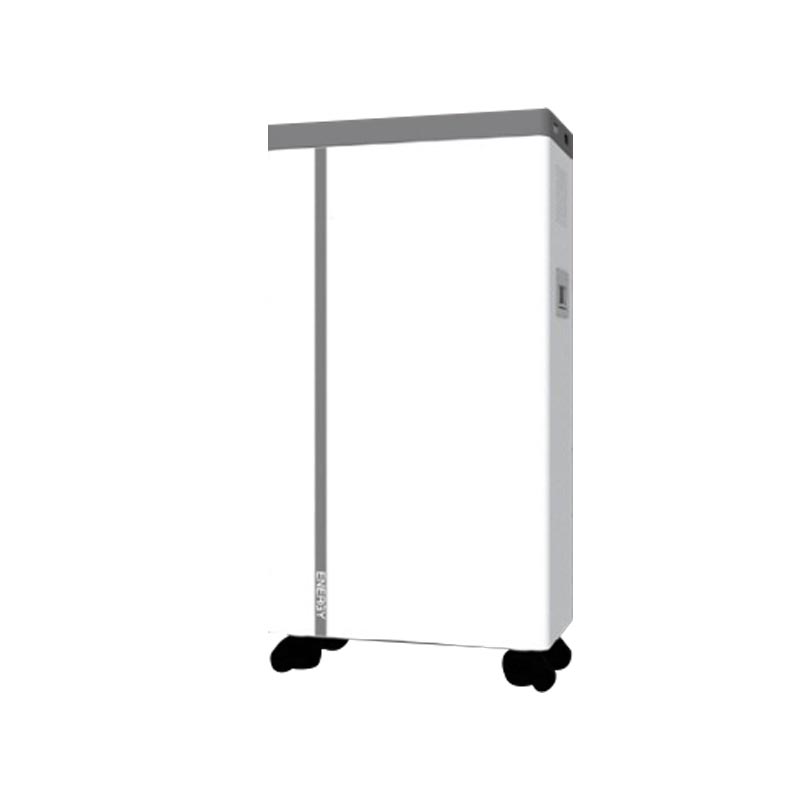

Geya Floor-standing Residential ESS-WLL016A1
The Geya Floor-standing Residential ESS-WLL016A1 is a next-generation home energy storage system designed to provide reliable, efficient, and eco-friendly power solutions. With a large 16.08kWh capacity, it ensures uninterrupted power supply for households, reducing reliance on the grid and optimizing energy consumption.
Key Features of Geya Floor-standing Residential ESS-WLL016A1
1. High-capacity power storage – 16.08kWh total energy, 15.27kWh usable energy, meeting the daily energy needs of households.
2. Advanced safety protection – Equipped with overcurrent, overvoltage, short circuit, undervoltage, and overtemperature protection, ensuring operational safety.
3. Intelligent management – Supports CAN/RS485 communication, enabling smart monitoring and optimized energy management.
4. Passive cooling system – Designed with natural cooling technology, eliminating the need for an active cooling system, increasing efficiency, and reducing maintenance costs.
5. Certified for safety and sustainability – Complies with CE, UN38.3, MSDS, and RoHS standards for environmental and safety assurance.
6. Long lifespan & high efficiency – 95% Depth of Discharge (DOD) ensures maximum battery utilization and prolonged service life.
7. Compact floor-standing design – Durable metal enclosure, IP20 protection rating, making it ideal for indoor environments.
Technical specification
| Model | PowerCool-WLL016A1 |
| Total Energy | 16.08kWh |
| Usable Energy | 15.27kWh |
| Voltage | 44.8-57.6Vdc |
| Nominal Voltage | 51.2Vdc |
| Rated Capacity | 314Ah |
| Max. Charge Voltage | 57.6Vdc |
| Nominal Discharging Current | 157A |
| Nominal Charging Current | 157A |
| Weight | 135kg |
| Dimension(mm)(H*L *W) | 871*450*250mm |
| Max.recommended DOD | 95% |
| Operating Condition | Indoor |
| Operating charge | 0~55°C |
| Temperature Discharge | 0~55°C |
| Standard Ambient Temperature Range | 0~40°C |
| Storage Temperature Range | >1 month 0~35°C / ≤1 month -20~45°C |
| Humidity | 5% ~ 95%(RH)(No Condensation) |
| Over Voltage Category | II |
| Cooling Type | Natural cooling |
| Case Material | Metal |
| Installation | floor-standing |
| IP Rating | IP 20 |
| Protective Class | I |
| Max. Connection Number | 6P |
| Communication | CAN / RS485 |
| Battery Protection | Over-current/Over-voltage/Short circuit/ Under-voltage/Over-temperature |
| Certificates | CE, UN38.3, MSDS |
| Warranty | 5 years |
